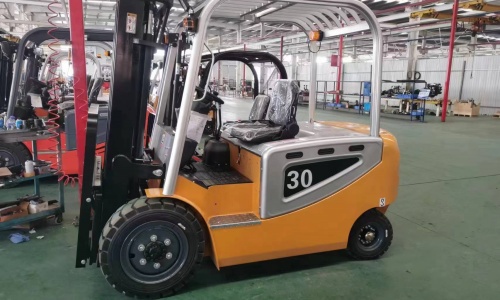

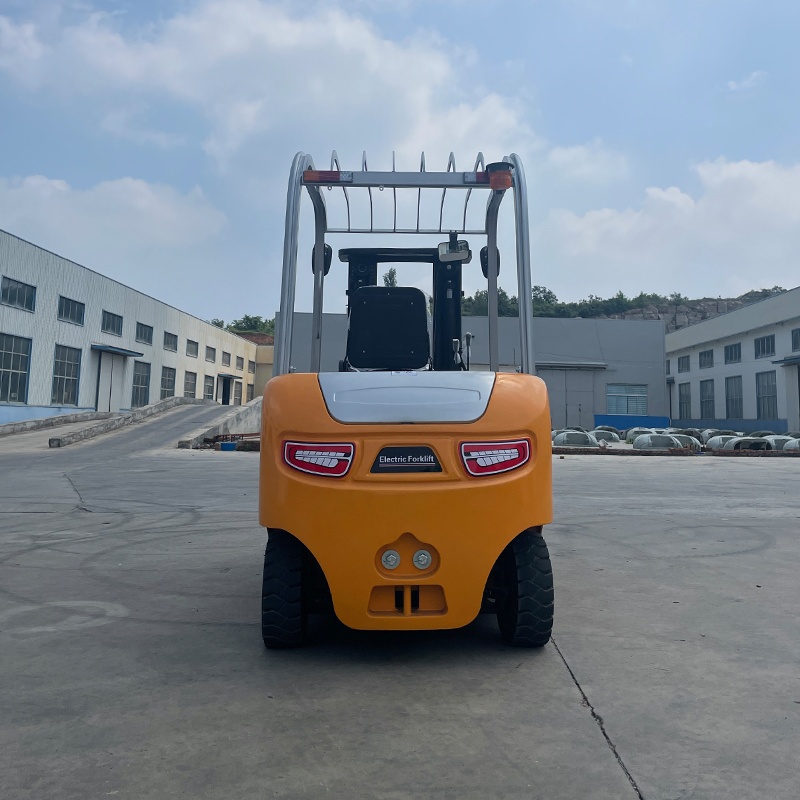

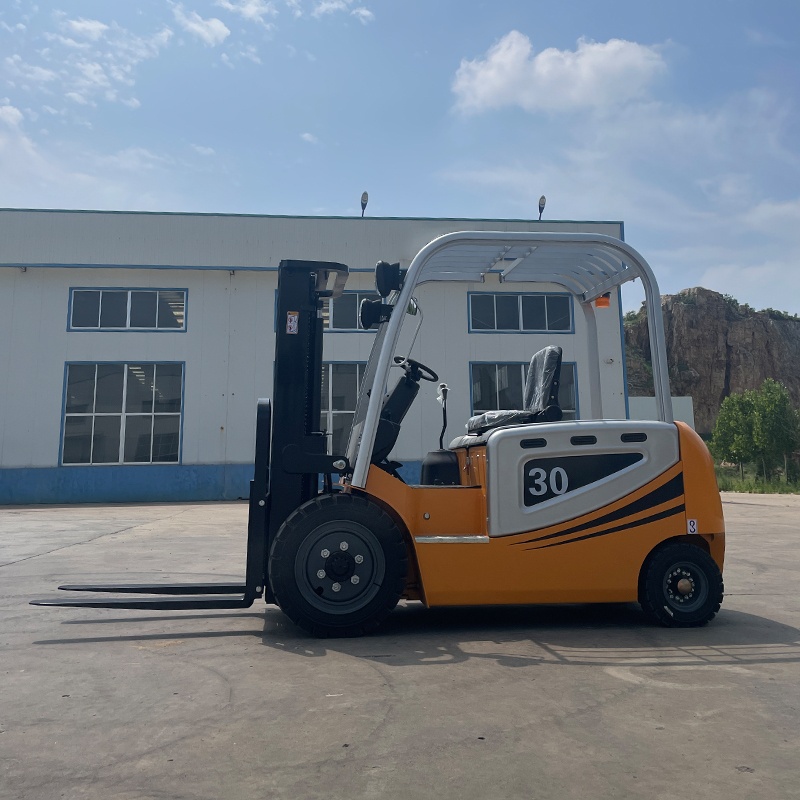

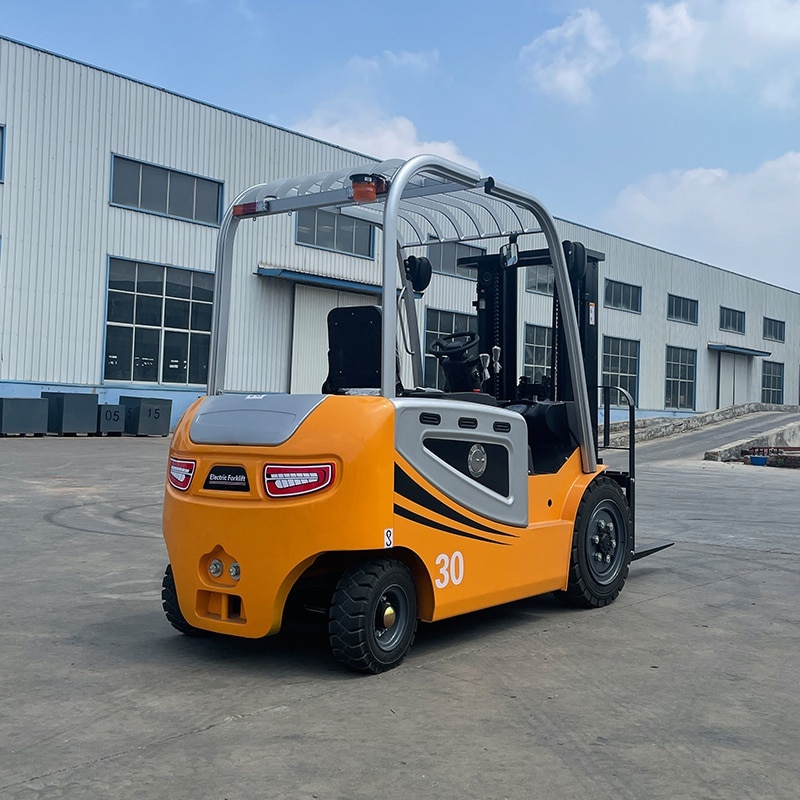

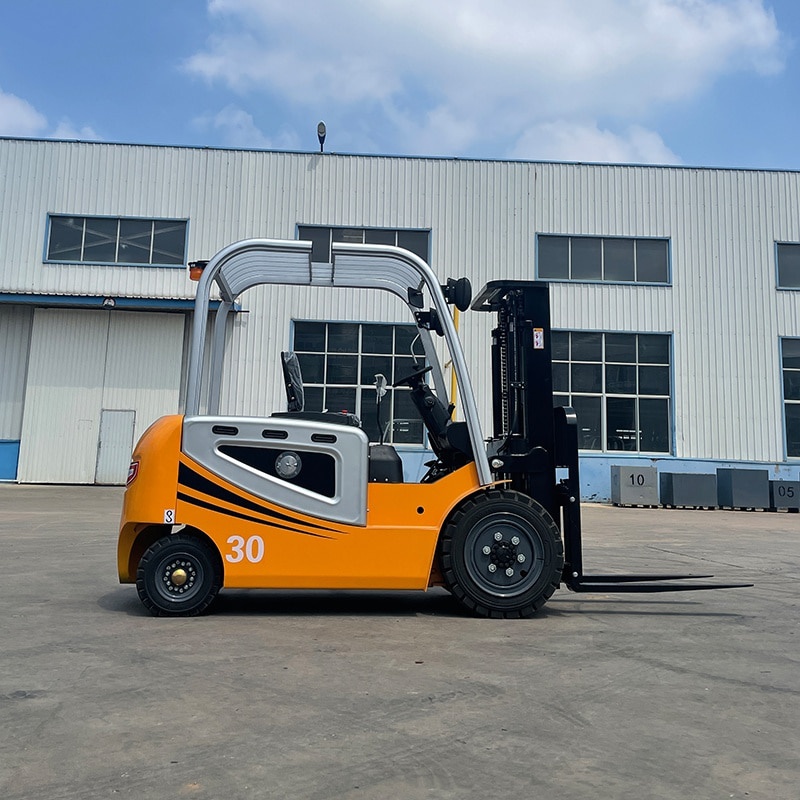

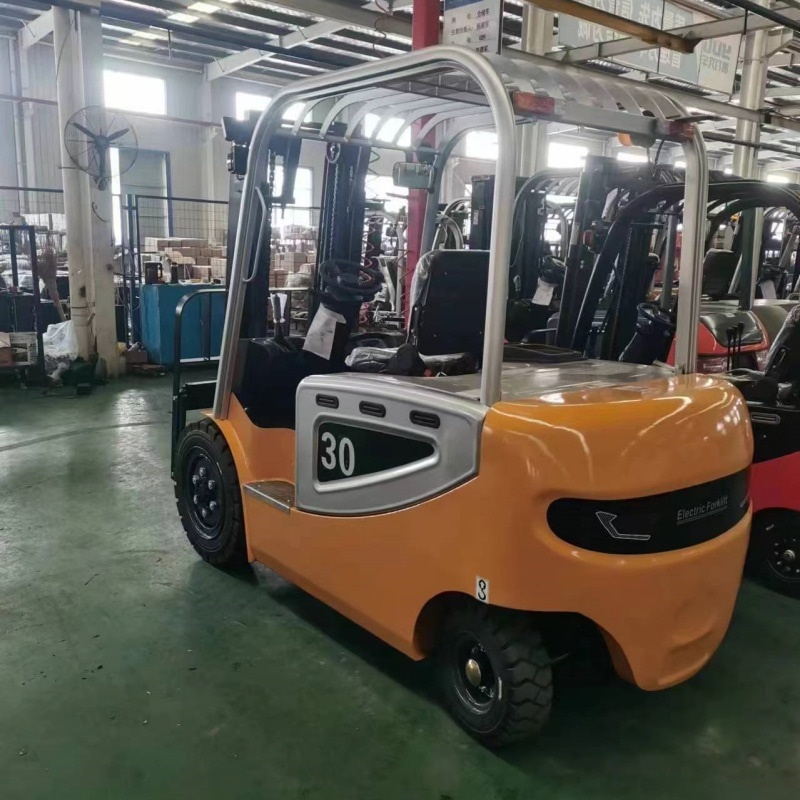

3.0 ton protable electric forklift HD-30E is a powered industrial truck used to lift and move materials over short distances.It can lift up to three ton of cargo.
3.0 ton protable electric forklift HD-30E is a powered industrial truck used to lift and move materials over short distances.It can lift up to three ton of cargo.The 3.0-ton portable electric forklift is a versatile and efficient material handling solution. With its compact design and strong lifting capacity, it can effortlessly maneuver in tight spaces while lifting heavy loads. The electric power source ensures clean and quiet operation, making it suitable for indoor use. Its ergonomic controls and advanced safety features make it easy to operate and enhance productivity in various industries.
2.Product Parameter:
Characteristics
Model
HD-30E
Driving mode
Seated
Rated capacity
Q
Kg
3000
Load center distance
C
mm
500
Power mode
Lead-acid battery
Wheelbase
L1
mm
1850
Performance
Travel speed,laden/unladen
Km/h
10/10
Lifting speed,laden/unladen
mm/s
200/300
Lowering speed,laden/unladen
mm/s
450
Maximum negotiable gradient,laden/unladen
%
12/15
Weight
Service mass(with battery)
Kg
4150
Axle load:unloaded,front/rear
Kg
/
Axle load:loaded,front/rear
Kg
/
Battery voltage/nominal capacity
V/Ah
72V/260Ah
Battery weight
kg
430
Electrical configuration
Drive motor power-60 minutes
kW
9PMSM
Lift motor power-15 minutes
kW
9PMSM
Drive motor controlling mode
MOSFET/AC
Lifting motor controlling mode
MOSFET/AC
Service brake/Parking brake
Hydraulic/Mechanical
Tyre
Tyre type
Pneumatic tire
Wheels number(front/rear)
2/2
Front track
W3
mm
1000
Rear track
W2
mm
994
Tyre(front)
28*9-15
Tyre(rear)
18*7 -8
Size
Front overhang
L2
mm
467
Tilt of the mast,front/rear
α / β
°
5/10
Height,mast retraction
H1
mm
2057
Free lift height
H3
mm
120
Overall maximum lift height
H
mm
3000
Height,mast extended
H2
mm
4200
Overhead guard height
H4
mm
2200
Lateral Fork Adjustment(Outside of Forks)Max/Min
W5
mm
1100/244
Fork size(LxWxT)
T*W*L4
mm
45*122*1070
Truck body length(fork excluded)
L‘
mm
2700
Truck body width
W1
mm
1225
Turning radius
R
mm
2680
Ground clearance under mast
H5
mm
82
Ground clearance at center of wheelbase(laden)
H6
mm
145
Width of aisle right-angle stacking(pallet1000*1000mm clearance 200mm)
Ast
mm
4100
Width of aisle right-angle stacking(pallet1200*1200mm clearance 200mm)
Ast
mm
4300
3.Product Feature:
1.Mechanical control,easy to operate.
2.Thickened mast, strong bearing capacity.
3.Hydraulic power steering wheel, easy to drive.
4.LED light, high brightness, energy saving.
5.Rubber tires, strong grip, not easy to slip.
6.High-quality hydraulic cylinder, good sealing, not easy to leak oil.
4.Our Advantages:
1.Quality Assurance
We have a complete quality control system,our products all have ISO9001 and CE certification . All of them are under 12months warranty and full life service.
2.Competitive price
We have stable customer resources, rich factory resources and deep industry experience, so we can get a very favorable price.
3.24*7 hour Support
We have a professional customer service team to answer your difficult questions within 24 hours.
4.After-sales Service
For parts broken or damaged due to quality problems, we provide free repair service within 12 months warranty.
5.Our Factory
6.FAQ:
Q 1:What is your MOQ?
A: 1 set
Q 2:How to Buy the Product?
A:Please send us your contact information,we will Reply you the soonest possible.
Q 3:Do you have any Discount?
A:According to the Order Quantity.
Q 4:Can you make Special Design and Logo on Product?
