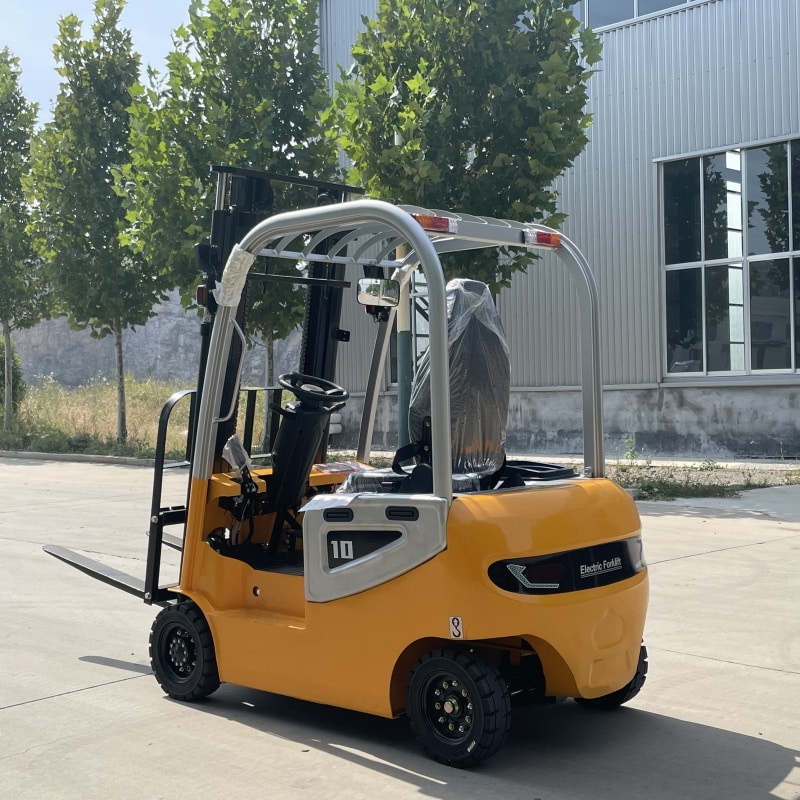

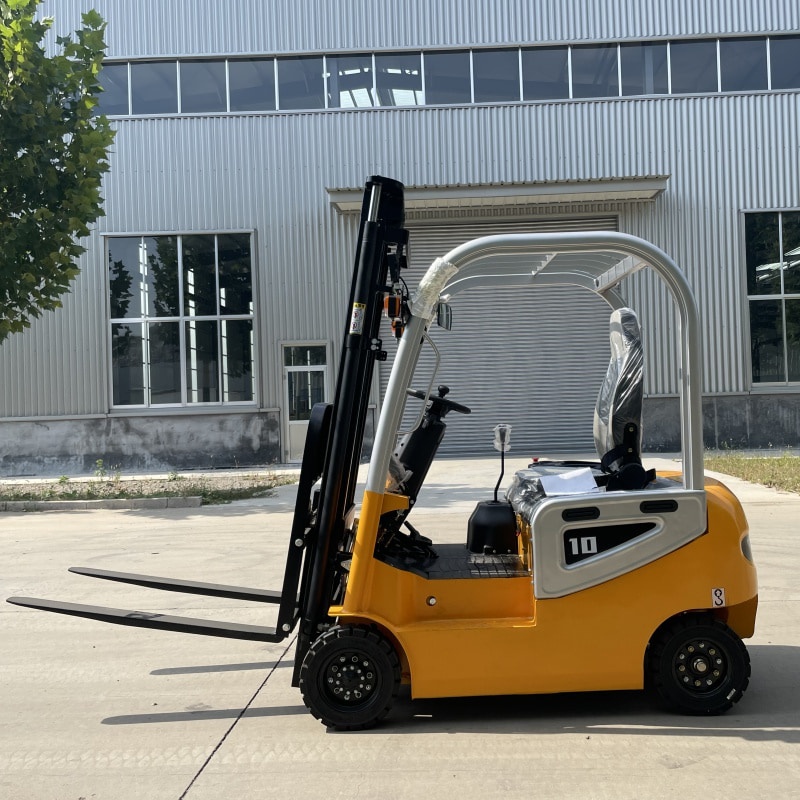

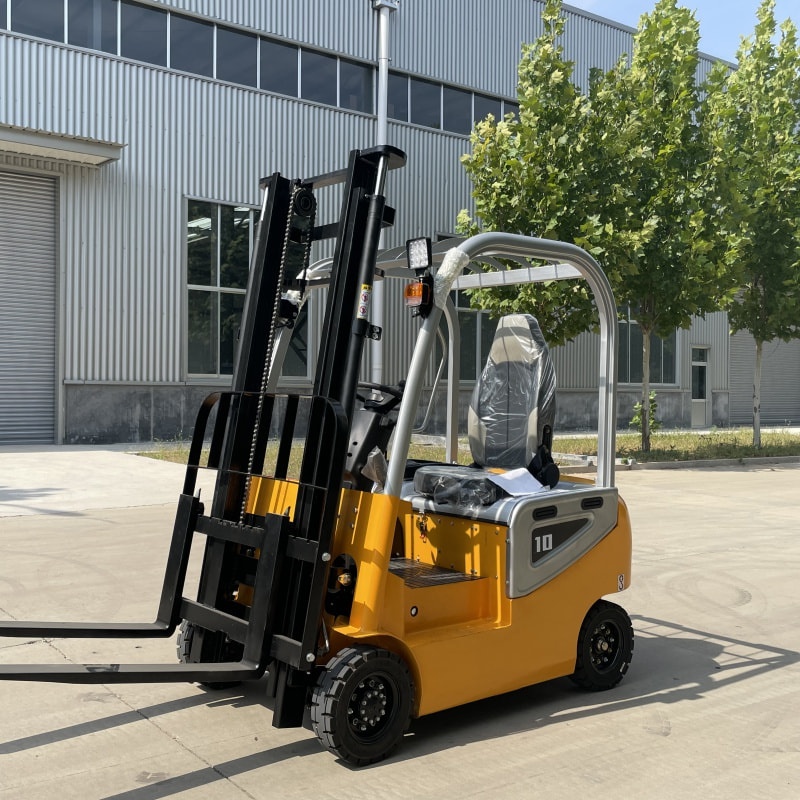

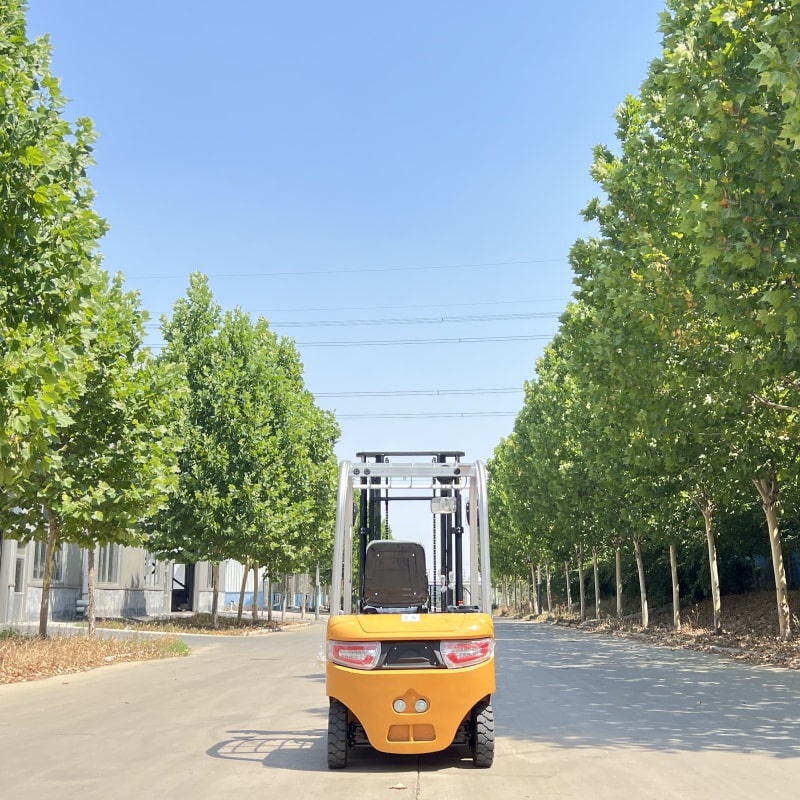

1.0 ton protable electric forklift HD-10E is a powered industrial truck used to lift and move materials over short distances.It can lift up to a ton of cargo.
1.0 ton protable electric forklift HD-10E is a powered industrial truck used to lift and move materials over short distances.It can lift up to a ton of cargo.The whole electric reach forklift is small in size, the rear wheel is 90° steering, the turning radius is small, and the mobility is flexible, which can be handled, stacked and turned in a narrow space. The variable wheelbase design of the front axle of this lift truck increases the stability of the vehicle and makes driving safer when extended; When retracted, the maneuverability is better, and the narrow space operation is more convenient.
2.Product Parameter:
Characteristics
Model
HD-10E
Driving mode
Seated
Rated capacity
Q
Kg
1000
Load center distance
C
mm
500
Power mode
Lead-acid battery
Wheelbase
L1
mm
1330
Performance
Travel speed,laden/unladen
Km/h
10/11
Lifting speed,laden/unladen
mm/s
220/230
Lowering speed,laden/unladen
mm/s
550
Maximum negotiable gradient,laden/unladen
%
15/20
Weight
Service mass(with battery)
Kg
1530
Axle load:unloaded,front/rear
Kg
/
Axle load:loaded,front/rear
Kg
/
Battery voltage/nominal capacity
V/Ah
60V/120Ah
Battery weight
kg
150
Electrical configuration
Drive motor power-60 minutes
kW
5PMSM
Lift motor power-15 minutes
kW
4.5PMSM
Drive motor controlling mode
MOSFET/PMSM
Lifting motor controlling mode
MOSFET/PMSM
Service brake/Parking brake
Hydraulic/Mechanical
Tyre
Tyre type
Solid tire
Wheels number(front/rear)
2/2
Front track
W3
mm
910
Rear track
W2
mm
865
Tyre(front)
15*4 1/2-8
Tyre(rear)
15*4 1/2-8
Size
Front overhang
L2
mm
308
Tilt of the mast,front/rear
α / β
°
5/10
Height,mast retraction
H1
mm
2017
Free lift height
H3
mm
/
Overall maximum lift height
H
mm
3000
Height,mast extended
H2
mm
3957
Overhead guard height
H4
mm
1847
Lateral Fork Adjustment(Outside of Forks)Max/Min
W5
mm
970/200
Fork size(LxWxT)
T*W*L4
mm
32*100*1070
Truck body length(fork excluded)
L‘
mm
1980
Truck body width
W1
mm
1020
Turning radius
R
mm
2050
Ground clearance under mast
H5
mm
77
Ground clearance at center of wheelbase(laden)
H6
mm
100
Width of aisle right-angle stacking(pallet1000*1000mm clearance 200mm)
Ast
mm
3400
Width of aisle right-angle stacking(pallet1200*1200mm clearance 200mm)
Ast
mm
3650
3.Product Feature:
1.Mechanical control,easy to operate.
2.Thickened mast, strong bearing capacity.
3.Hydraulic power steering wheel, easy to drive.
4.LED light, high brightness, energy saving.
5.Rubber tires, strong grip, not easy to slip.
6.High-quality hydraulic cylinder, good sealing, not easy to leak oil.
4.Our Advantages:
1.Quality Assurance
We have a complete quality control system,our products all have ISO9001 and CE certification . All of them are under 12months warranty and full life service.
2.Competitive price
We have stable customer resources, rich factory resources and deep industry experience, so we can get a very favorable price.
3.24*7 hour Support
We have a professional customer service team to answer your difficult questions within 24 hours.
4.After-sales Service
For parts broken or damaged due to quality problems, we provide free repair service within 12 months warranty.
5.Our Factory
6.FAQ:
Q 1:What is your MOQ?
A: 1 set
Q 2:How to Buy the Product?
A:Please send us your contact information,we will Reply you the soonest possible.
Q 3:Do you have any Discount?
A:According to the Order Quantity.
Q 4:Can you make Special Design and Logo on Product?
